Allen Clevis Pin 4.9mm A4

Allen Clevis Pin 4.9mm A4

Allen 4.9mm diameter clevis pins in A4 marine-grade stainless steel - for use with split rings and dinghy/keelboat fittings.

The split ring is not included and can be bought here.

Technical Info

• Brand: Allen
• Material: A4 marine-grade stainless steel

• Supplied as single units

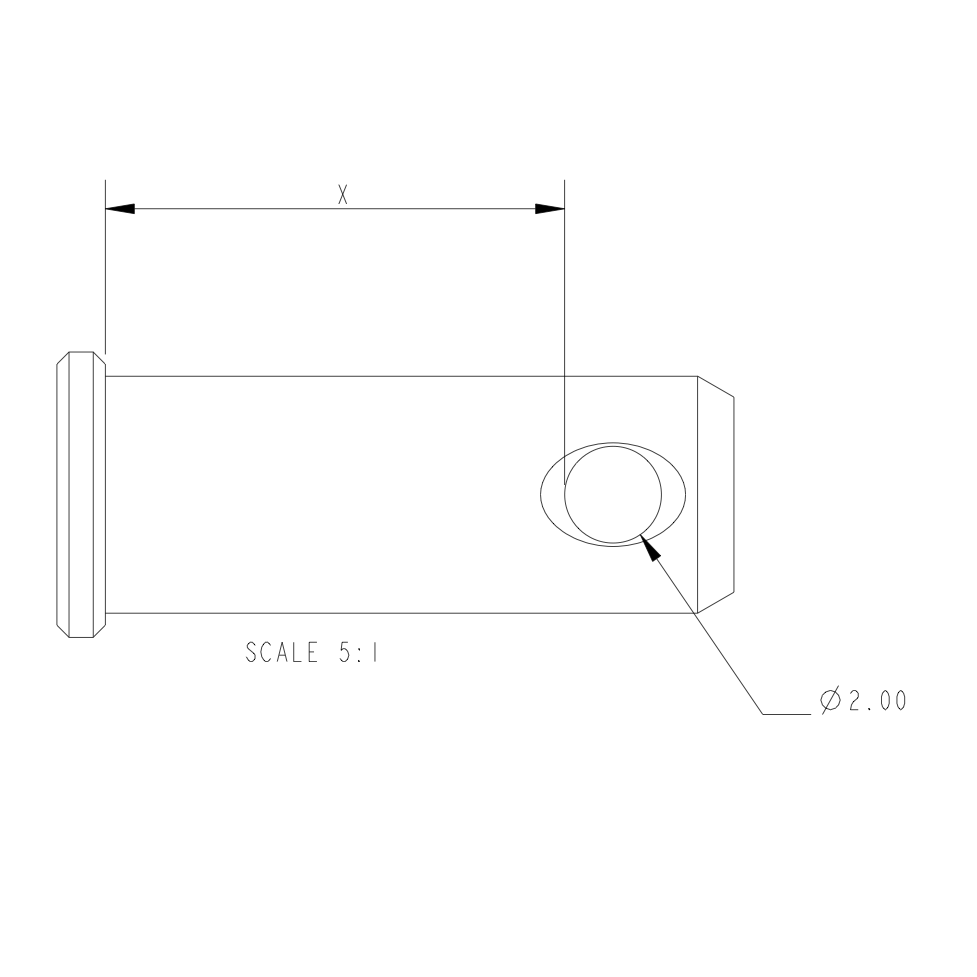

• Sizes - dimensions (mm) refer to: main diameter of pin x length from shoulder to start of hole (X)
  • 4.9 x 9.5 (end to end length 14.0mm)
  • 4.9 x 12.5 (end to end length 17.0mm)
  • 4.9 x 15.0 (end to end length 19.5mm)
  • 4.9 x 18.5 (end to end length 23.0mm)
  • 4.9 x 21.5 (end to end length 26.5mm)
  • 4.9 x 25.0 (end to end length 29.5mm)

• Hole size: 2.0mm diameter

Pair-up with either of these two split rings:

• Allen 0.9 x 10mm
• G Split Ring 1.00 x 9mm

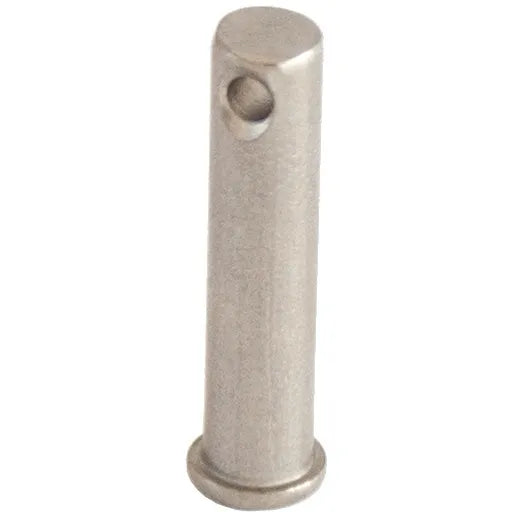

Main image is for illustrative purposes only and may not accurately represent the actual pin length and diameter.
