Breakaway Cable With Mounting Bracket

Breakaway Cable With Mounting Bracket

Trailer items can either be shipped, collected or fitted by us. We offer full servicing and replacement of all unbaked trailer parts at our base at Queen Mary Sailing Club in Surrey. Click here for full details.

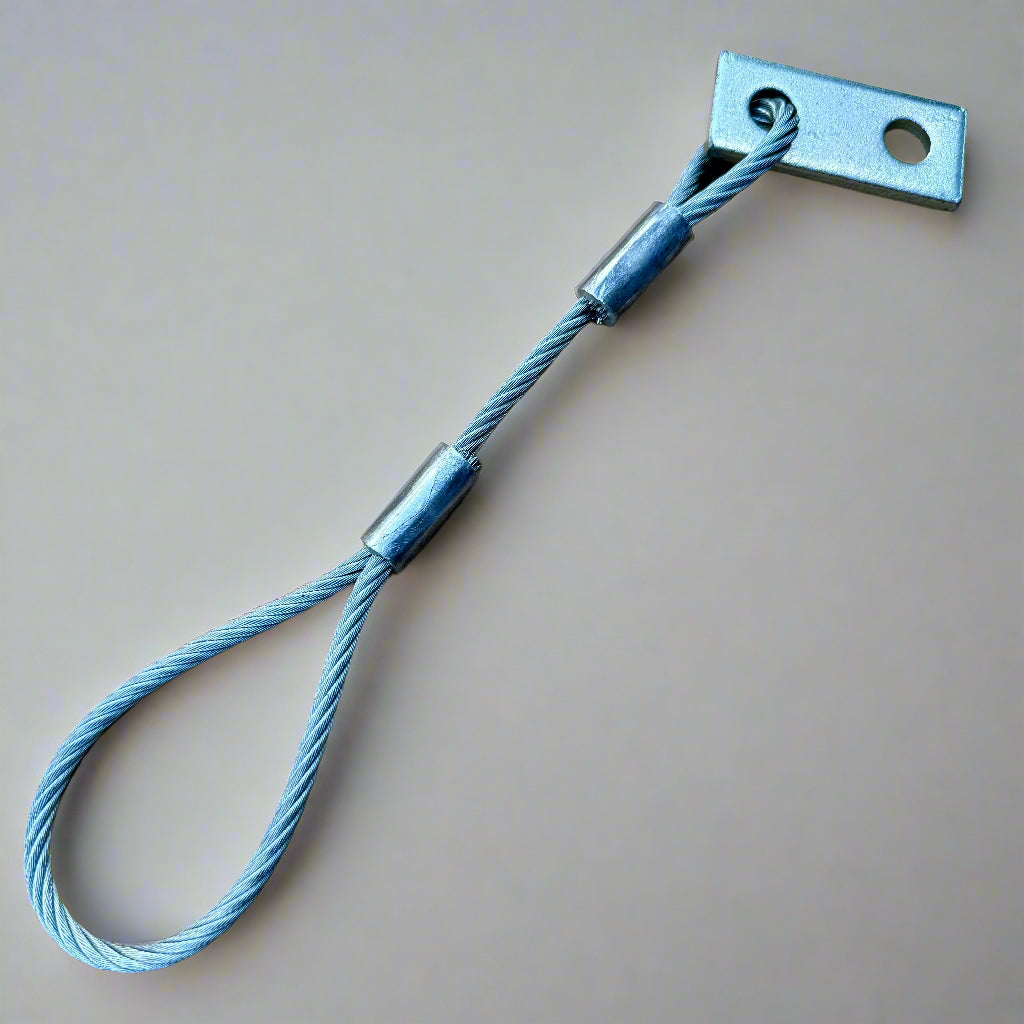

Simple and reliable safety/breakaway cable suitable for unbraked dinghy trailers (also known as combi trailers) and other small towables. The mounting bracket is bolted through the trailer's coupling and draw bar* and remains there permanently. It secures to the towing vehicle by dropping the wire loop over the ball of the tow bar just before connecting the trailer coupling. Simple, easy and strong.

Specifications:

• Suitable for small un-braked trailers
• Loop fits over 50mm ball (on tow bar/hitch)
• Cable: 6mm diameter stainless steel
• Length: 300mm
• Bolt/nut size required for bracket: M12
• Bolt length required: varies according to the trailer and fittings**


*the term draw bar refers to the section of the trailer that projects forwards and to which the coupling bolts onto

**we sell many lengths of 12mm hi-tensile steel bolts plus nyloc nuts and washers

Colour, appearance and/or design may vary slightly from that shown yet all critical dimensions will remain the same. All are of equal quality.
